Using Kubernetes cert-manager

under construction

The English version of this document is under construction and will be available soon.


本文將介紹如何在 Kubernetes 中透過 cert-manager 和 Issuer，使用您自己的私有憑證來簽發與管理 TLS 憑證，實現自動化、不中斷的安全管理流程。


開始之前​

  • 請先參考此文件建立並存取 K8s 叢集。

Step 1. 部署 echo-server​

vim ingress-echo-server-pod.yaml
apiVersion: v1
kind: Pod
metadata:
  name: echo-server
  namespace: default
  labels:
    app: echo-server
spec:
  containers:
  - name: echo-server
    image: gcr.io/google-containers/echoserver:1.10
    ports:
    - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: echo-server-service
  namespace: default
spec:
  selector:
    app: echo-server
  ports:
  - protocol: TCP
    port: 2145
    targetPort: 8080
kubectl apply -f ingress-echo-server-pod.yaml

Step 2. 建立自簽根 CA 的 Issuer (selfsigned-issuer)​

vim selfsigned-issuer.yaml
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: selfsigned-issuer
  namespace: default
spec:
  selfSigned: {}
kubectl apply -f selfsigned-issuer.yaml
tip
  • selfsigned-issuer 是用來生成自簽根 CA 的起點。它的 selfSigned: {} 配置表示它會生成一個沒有上層簽發者的證書。
  • 我們需要一個根 CA 作為證書鏈的頂端，後續的證書（如 test.local）將由這個根 CA 簽發。
kubectl get issuer selfsigned-issuer -n default -o yaml

確定 status.conditions 的 type 為 Ready


Step 3. 生成自簽根 CA 證書 (selfsigned-ca)​

vim selfsigned-ca.yaml
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: selfsigned-ca
  namespace: default
spec:
  isCA: true
  commonName: "Self-Signed CA"
  secretName: selfsigned-ca-secret
  privateKey:
    algorithm: RSA
    size: 2048
  issuerRef:
    name: selfsigned-issuer
    kind: Issuer
    group: cert-manager.io
kubectl apply -f selfsigned-ca.yaml
tip
  • 此 Certificate 資源使用 selfsigned-issuer 生成一個自簽根 CA。
  • isCA: true 表示這是一個 CA 證書，可以用來簽發其他證書。
  • 生成的證書和私鑰會存儲在 selfsigned-ca-secret 中，作為後續簽發證書的基礎。

Step 4. 創建基於根 CA 的 Issuer (ca-issuer)​

vim ca-issuer.yaml
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: ca-issuer
  namespace: default
spec:
  ca:
    secretName: selfsigned-ca-secret
kubectl apply -f ca-issuer.yaml

Step 5. 建立對外 IP​

vim ingress-lb-service.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
  name: loadbalancer-ingress-nginx
  namespace: ingress-nginx
spec:
  type: LoadBalancer
  externalTrafficPolicy: Cluster
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
    - name: https
      port: 443
      protocol: TCP
      targetPort: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
kubectl apply -f ingress-lb-service.yaml
caution

請確保您的安全性群組有設定 ingress 80 與 443 port 的規則。


Step 6. 配置 Ingress 並啟用 TLS​

vim ingress-rule.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: echo-ingress
  namespace: default
  annotations:
    cert-manager.io/issuer: "ca-issuer"
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  tls:
  - hosts:
    - test.local # 虛擬域名，稍後用本地 hosts 文件解析
    secretName: my-cert-secret
  rules:
  - host: test.local
    http:
      paths:
      - path: /vkstestpath
        pathType: Prefix
        backend:
          service:
            name: echo-server-service
            port:
              number: 2145
kubectl apply -f ingress-rule.yaml

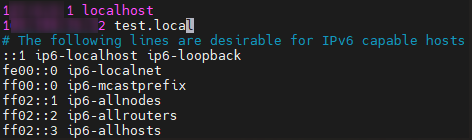

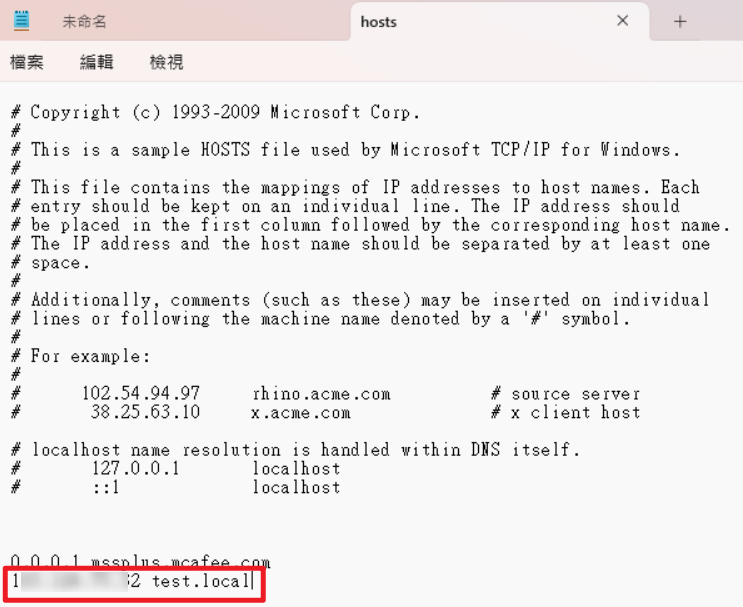

Step 7. 設定 /etc/hosts 來解析域名​

kubectl get services -n ingress-nginx
sudo vim /etc/hosts

## 加入
EXTERNAL-IP test.local

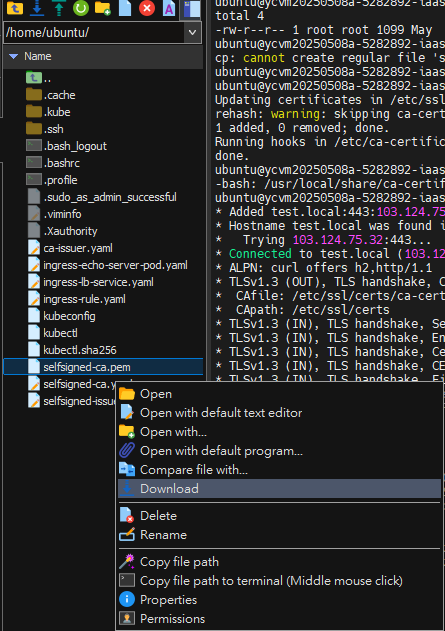

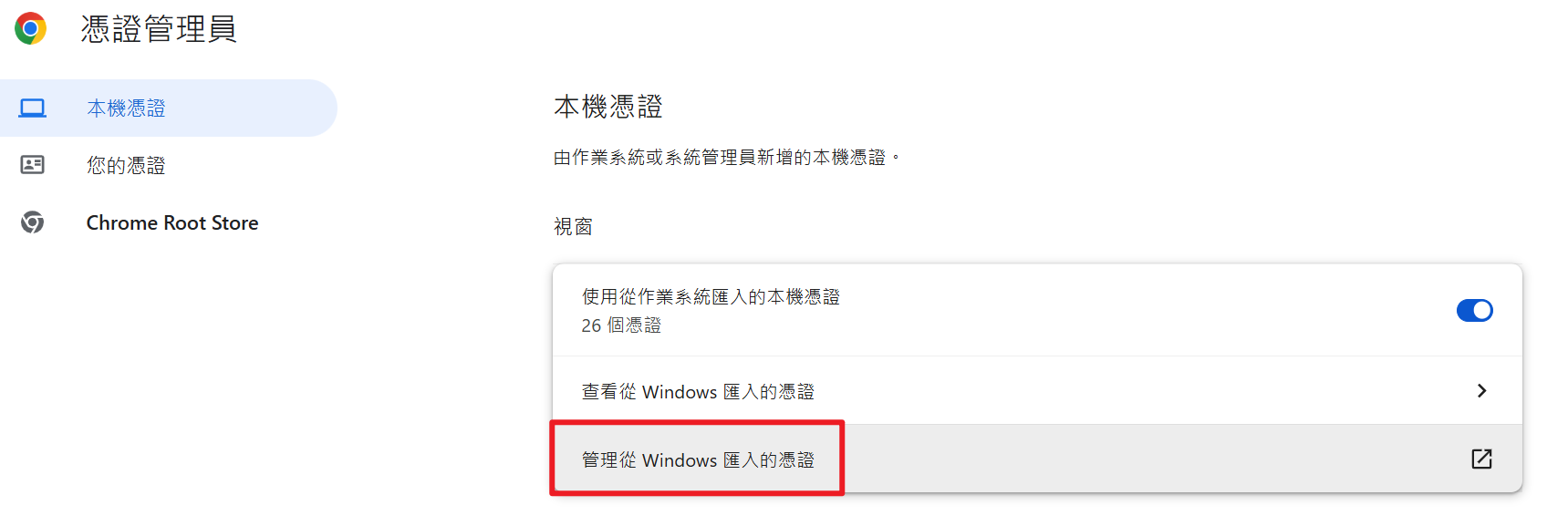

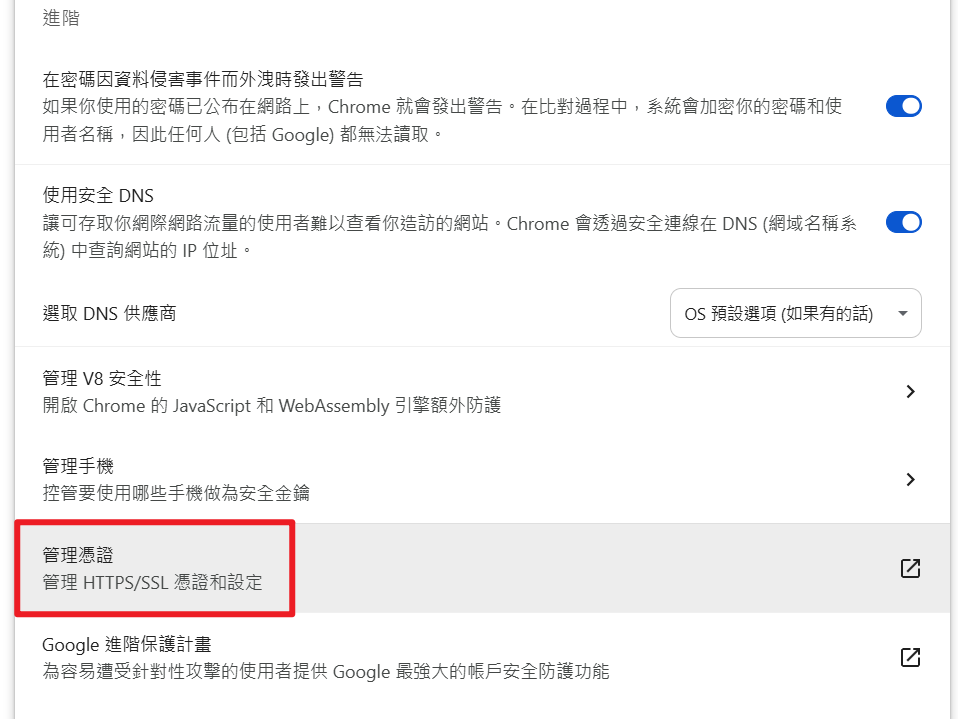

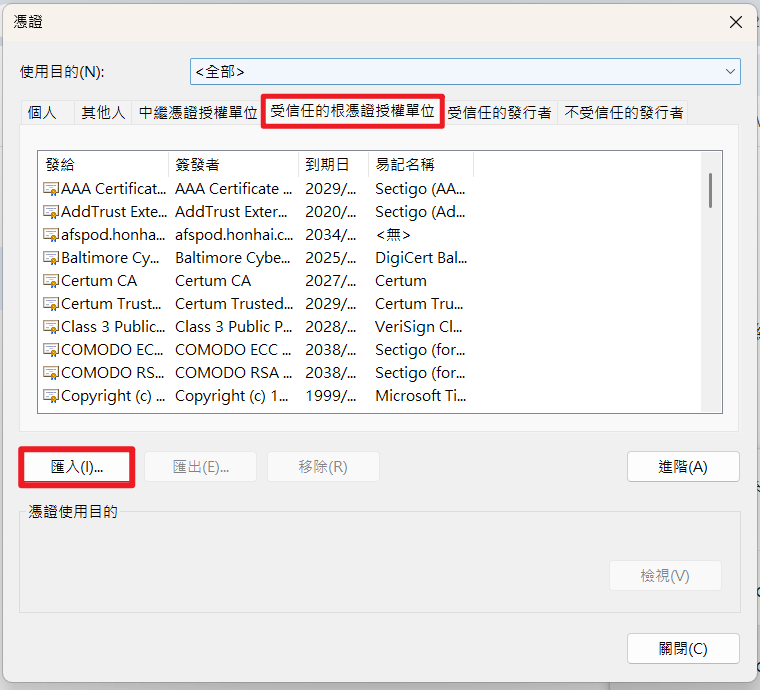

Step 8. 匯入根 CA​

kubectl get secret selfsigned-ca-secret -n default -o jsonpath="{.data.tls\.crt}" | base64 -d > selfsigned-ca.pem
sudo cp ~/selfsigned-ca.pem /usr/local/share/ca-certificates
sudo cp /usr/local/share/ca-certificates/selfsigned-ca.pem /usr/local/share/ca-certificates/selfsigned-ca.crt
sudo update-ca-certificates

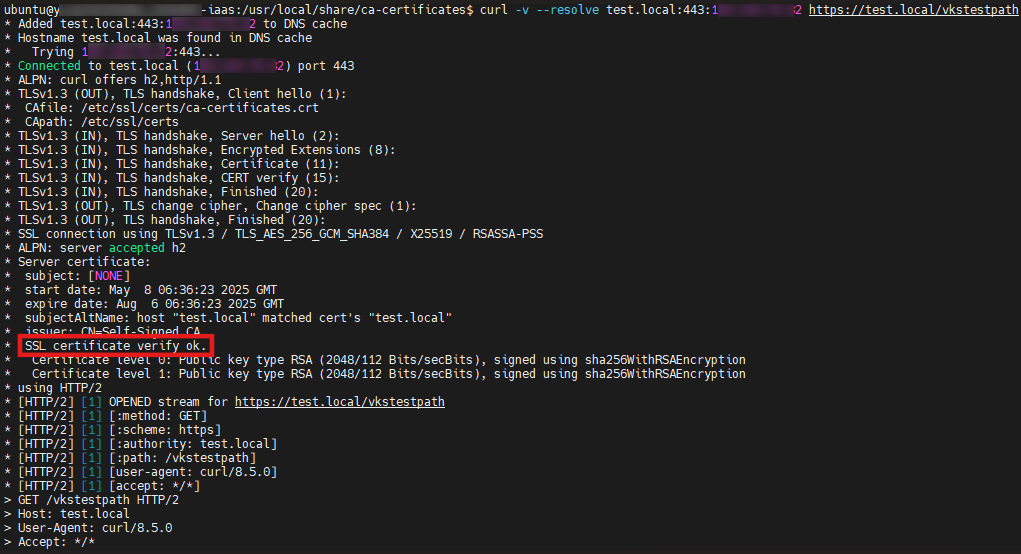

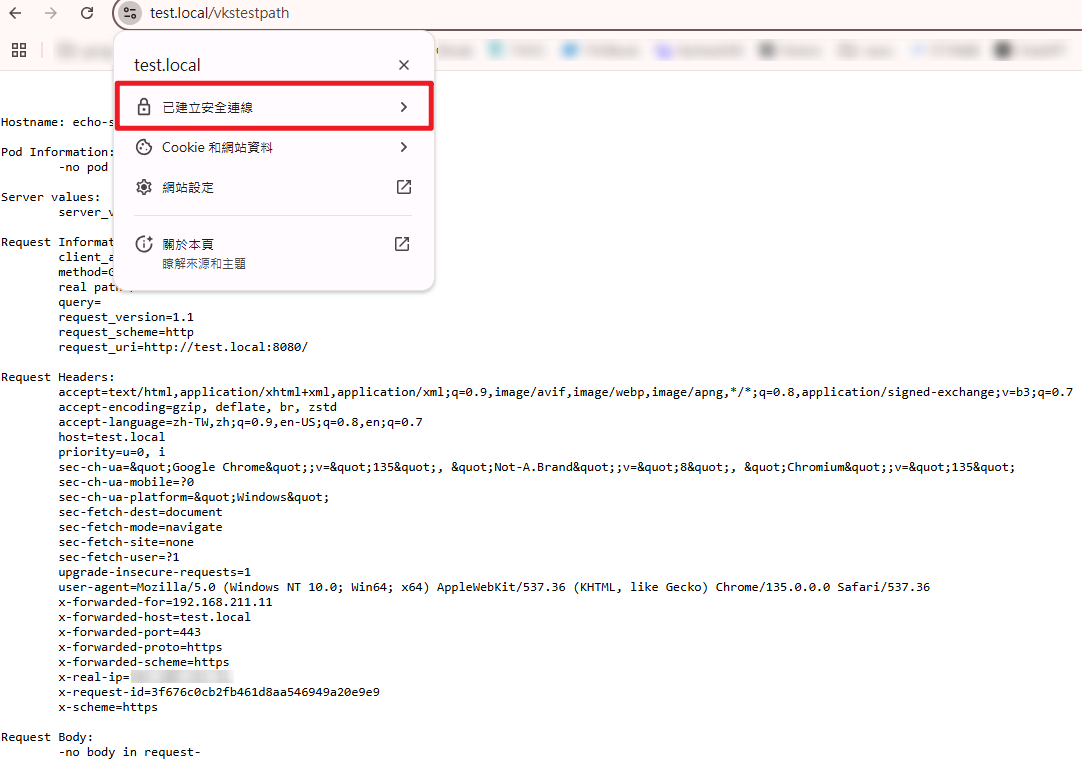

Step 9. 確認憑證是否已匯入​

curl -v --resolve test.local:443:<external-ip> https://test.local/vkstestpath
