HowTo: Use TWSC COS to back up, synchronize and restore data

In this document, you will learn how to use COS to back up, synchronize and restore data of Virtual Compute Service (VCS) and Container Compute Service (CCS). For VCS instances/containers of different operating systems (Linux and Windows), we will separately show you how to back up and synchronize data using third-party softwares, such as s3cmd and Duplicati:

S3cmd is a command line tool that applicable to VCS Linux instances and CCS containers. Learn more about s3cmd.
Duplicati is a GUI tool that is applicable to VCS windows instances. Learn more about Duplicati.

Preparation

Create VCS instances or Interactive Containers.
Create COS buckets to back up or synchronize your data.
Connect to your VCS instance or Interactive container, and obtain the folder/file path to be backed up/synchronized.

s3cmd: applicable to VCS Linux instances and CCS containers

Install and set up s3cmd

1. Install pip (For CCS container, please go to step 2)

sudo apt install python-pip

2. Download and install s3cmd

sudo pip install s3cmd

3. Set parameters

s3cmd --configure

After that, system will return the following content.

Enter new values or accept defaults in brackets with Enter.
Refer to user manual for detailed description of all options.
Access key and Secret key are your identifiers for Amazon S3. Leave them empty for using the env variables.

4. Enter COS Access Key and Secret Key

Please enter your COS Access key and Secret key

Access Key: <YOUR-ACCESS-KEY>
Secret Key: <YOUR-SECRET-KEY>

info

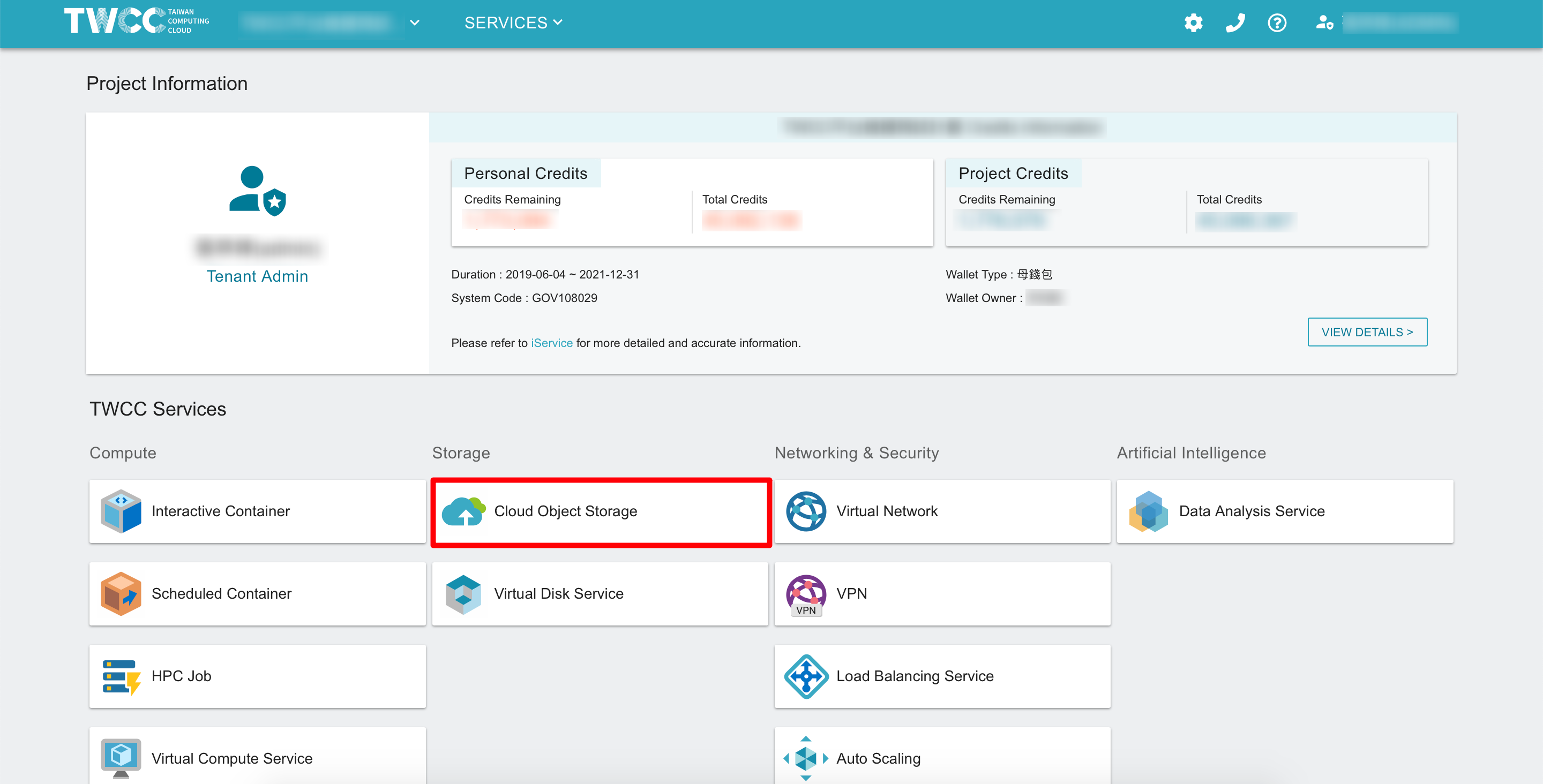

You can get COS connection information on SERVICES> Cloud Object Storage (COS)> Connection Information page.

5. Default Region: press enter key

Default Region [US]:

6. Endpoint: please enter TWSC COS endpoint:cos.twcc.ai

Use "s3.amazonaws.com" for S3 Endpoint and not modify it to the target Amazon S3.
S3 Endpoint [s3.amazonaws.com]: cos.twcc.ai

7. DNS-style sccess point: also enter cos.twcc.ai

Use "%(bucket)s.s3.amazonaws.com" to the target Amazon S3. "%(bucket)s" and "%(location)s" vars can be used
if the target S3 system supports dns based buckets.
DNS-style bucket+hostname:port template for accessing a bucket [%(bucket)s.s3.amazonaws.com]: cos.twcc.ai

8. (Optional) set up encryption password

If you need data encryption, please enter a password for encryption password, or simply press enter key to skip.

Encryption password is used to protect your files from reading
by unauthorized persons while in transfer to S3
Encryption password:

9. (Optional) Bypass GPG program path: press enter key

Path to GPG program [/usr/bin/gpg]:

10. Use HTTPS protocol, enterYes (case sensitive!)

When using secure HTTPS protocol all communication with Amazon S3
servers is protected from 3rd party eavesdropping. This method is
slower than plain HTTP, and can only be proxied with Python 2.7 or newer
Use HTTPS protocol [Yes]: Yes

11. Bypass HTTP Proxy server name: press enter key

On some networks all internet access must go through a HTTP proxy.
Try setting it here if you can't connect to S3 directly
HTTP Proxy server name:

12. Double check the settings

New settings:
  Access Key: XXXXXXXXXXXXXXX
  Secret Key: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
  Default Region: US
  S3 Endpoint: cos.twcc.ai
  DNS-style bucket+hostname:port template for accessing a bucket: cos.twcc.ai
  Encryption password:
  Path to GPG program: /usr/bin/gpg
  Use HTTPS protocol: True
  HTTP Proxy server name:
  HTTP Proxy server port: 0

13. Test access: enter n

Test access with supplied credentials? [Y/n] n

14. entery to save the settings

After entering y, you will get the path and file name of the configuration file:/home/<system account>/.s3cfg

Save settings? [y/N] y
Configuration saved to '/home/<system account>/.s3cfg'

15. Modify certificate settings to avoid backup/synchronization errors

(system account) please change to the system account shown in step 14

sed -i 's/check_ssl_certificate = True/check_ssl_certificate = False/g' /home/<system account>/.s3cfg

Back up/synchronize data to COS

After the setting is completed, you can save your data in VCS instances and containers to COS buckets. There are two methods: backup and synchronization.

❶ Backup: All your data will be stored. If the data is deleted or lost by mistake, you can restore the data from COS at any time.
❷ Synchronization: You can make your data in VCS instances/containers consistent with the data in COS. If the supercomputer data is deleted, the COS data will be deleted simultaneously.

Back up data
- Back up now
```
s3cmd sync /<LOCAL_DIR> s3://<DEST_BUCKET>
```
- Set the backup schedule, for example, regularly back up files to COS every day at 2AM
  Enter the following command to edit the crontab job
```
crontab -e
```
  Enter the following command in the script
```
0 2 * * * /usr/local/bin/s3cmd -c /<LOCAL_DIR>/.s3cfg sync /home/ubuntu s3://<DEST_BUCKET>
```

Synchronize data

Synchronize now

s3cmd sync --delete-removed /<LOCAL_DIR> s3://<DEST_BUCKET>

Set the synchronization schedule, for example, regularly synchronize files to COS every day at 2AM

Enter the following command to edit the crontab job

crontab -e  # Add the following content

Enter the following command in the script

 0 2 * * * s3cmd sync --delete-removed /<LOCAL_DIR> s3://<DEST_BUCKET>

info

Configure schedules:* * * * *(Minute Hour Day Month Week)

Name	Allowed value (integer)
Minute	0 - 59, or * (no designation)
Hour	0 - 23, or * (no designation)
Day of the month	1 - 31, or * (no designation)
Month	1 to 12, or * (no designation)
Day of the week	0 to 7 (both 0 and 7 both mean Sunday), or * (no designation)

info

If you need to back up multiple versions of files, please enable the Bucket Versioning function. Refer to Enable or Disable Versioning for a Bucket from S3 Browser.

Recover backed up/synchronized files from COS

If the data of VCS instances/containers is deleted by mistake or is lost, you can use the restore function to recover the data. There are two methods: backup and synchronization.

❶ Restore from backup: All data backed up in COS will be restored to local machine, and the inconsistent data between both sides will still be stored in supercomputer.
❷ Restore from synchronization: The data synchronized with COS will be completely restored to local machine, and will use COS data for the inconsistencies between both sides.

Restore from backup

s3cmd sync s3://<DEST_BUCKET>/ /<LOCAL_DIR>/

Restore from synchronization

s3cmd sync --delete-removed s3://<DEST_BUCKET>/ /<LOCAL_DIR>/

Other COS commands

In addition to backing up, synchronizing and recovering data, s3cmd can also perform general operations on COS buckets:

List all buckets

s3cmd ls

Create a bucket

s3cmd mb s3://<BUCKET_NAME>

Upload a file

s3cmd put <LOCAL_FILE> s3://<BUCKET_NAME>

List all files in the bucket

s3cmd ls s3://<BUCKET_NAME>

Delete a file in the bucket

s3cmd rm s3://<BUCKET_NAME>/<FILE_NAME>

Delete a large number of files in the bucket (e.g., all files under the folder gpu-burn)

s3cmd del s3://<BUCKET_NAME>/gpu-burn/*

Delete a folder in the bucket

s3cmd del --recursive s3://<BUCKET_NAME>/<FOLDER_NAME>/

Delete a bucket

s3cmd rb s3://<BUCKET_NAME>

info

More detailed instructions for S3cmd commands

Duplicati: applicable to VCS Windows instances

Download and install Duplicati

Go to Duplicati download page to download and install the latest version suitable for Microsoft Windows.

Back up data to COS

After the installation, you can save your data in VCS instances and containers to COS buckets.

1. Add backup settings

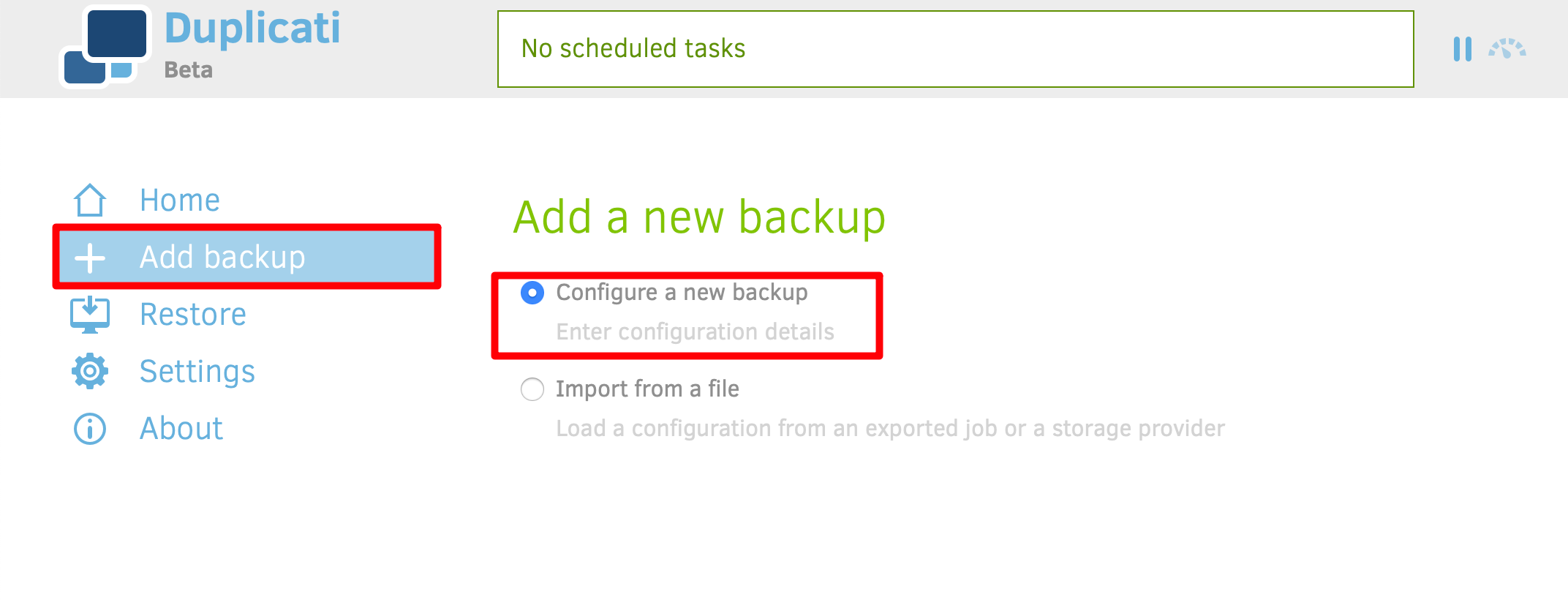

Click + Add backup , and select Configure a new backup

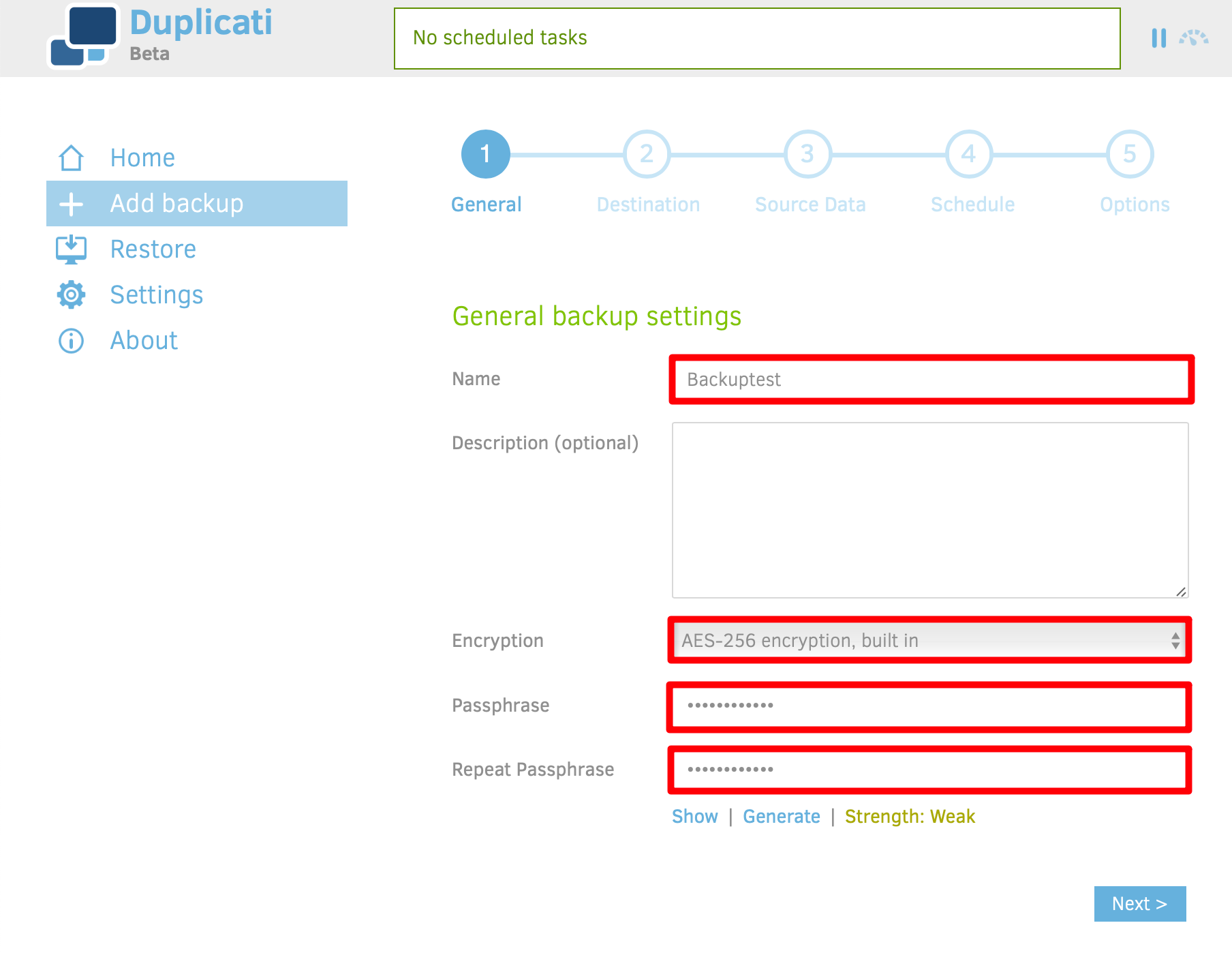

Set the backup name, select AES-256 encryption, built-in for encryption, and set the passphrase.

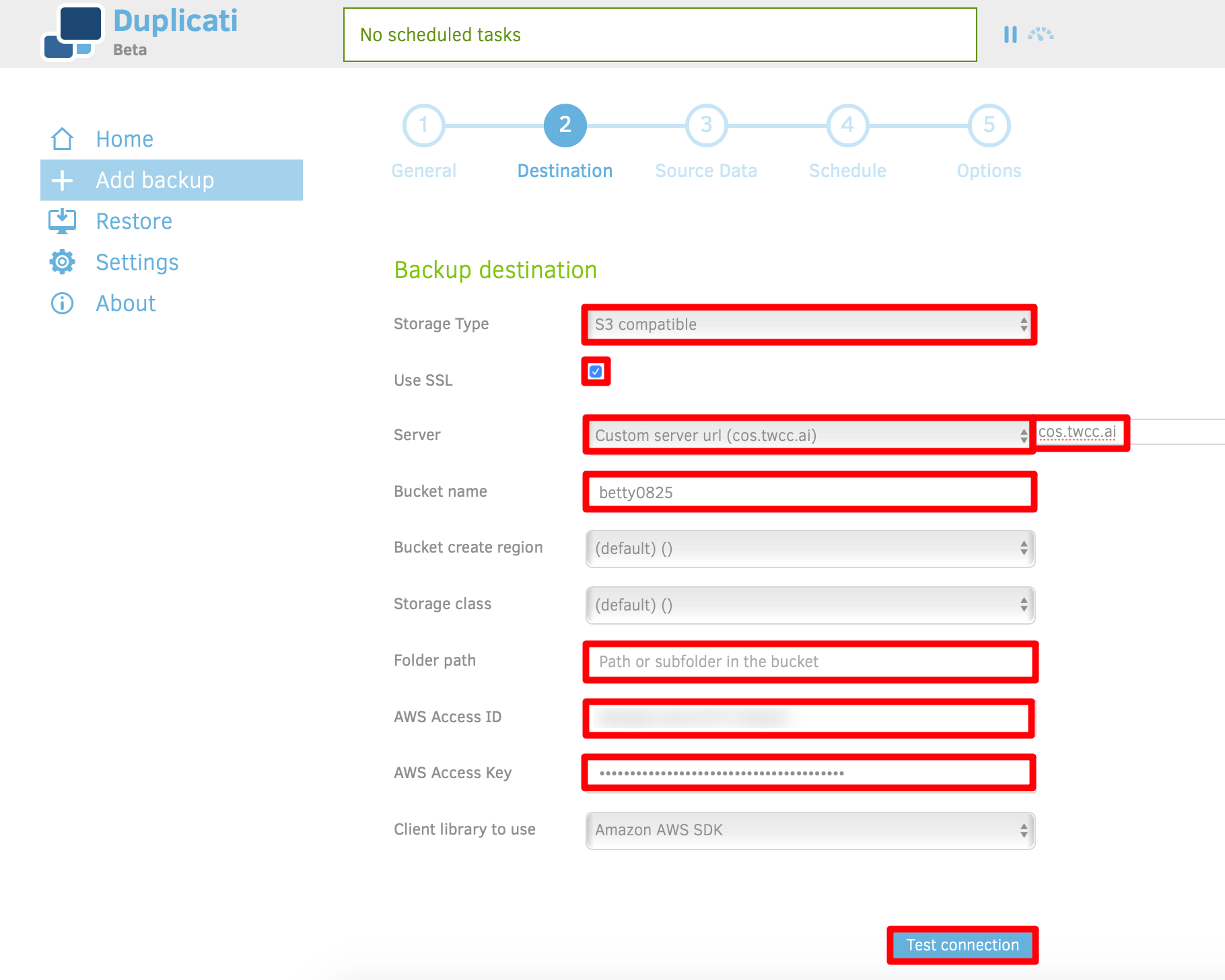

2. Set the backup destination

Storage Type: S3 compatible
Use SSL: please tick the checkbox
Server: select Custom server url, and enter cos.twcc.ai
Bucket name: enter the bucket name you wish to store the backups
AWS Access ID/Key: enter COS Access Key and Secret Key

info

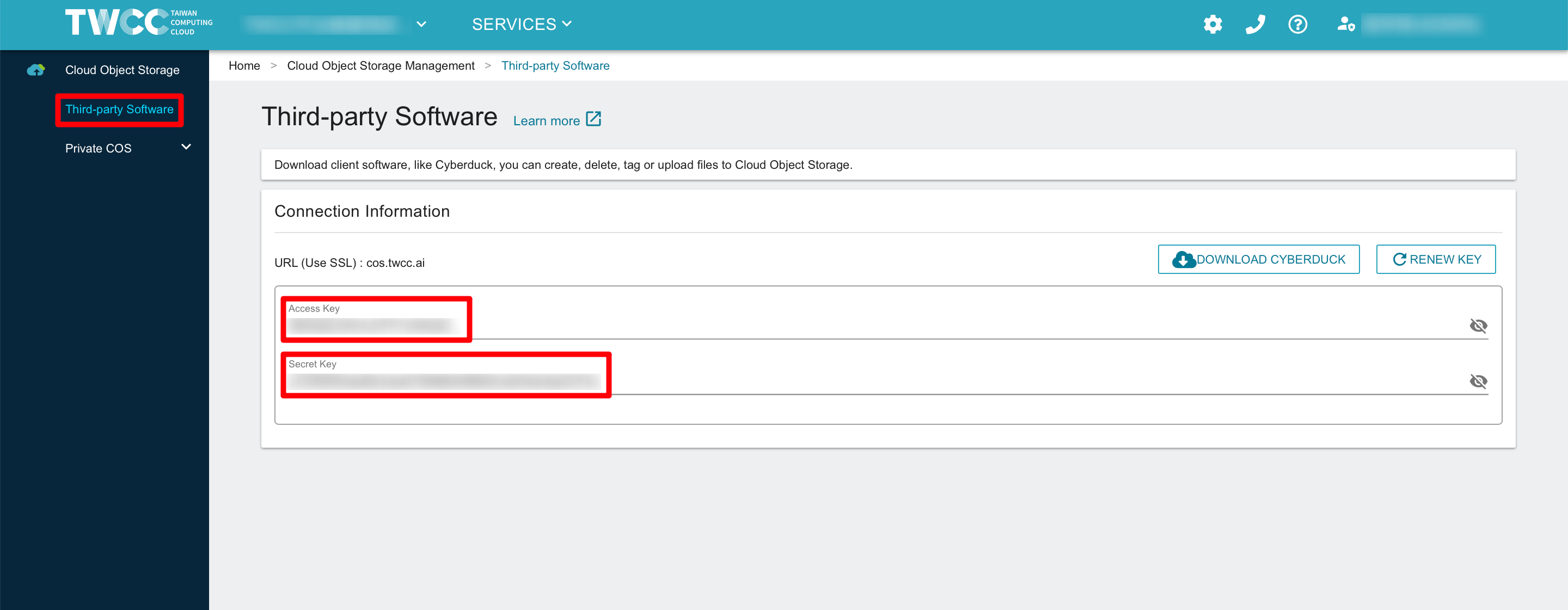

You can get public COS connection information on SERVICES> Cloud Object Storage (COS)> Third-party Software page.

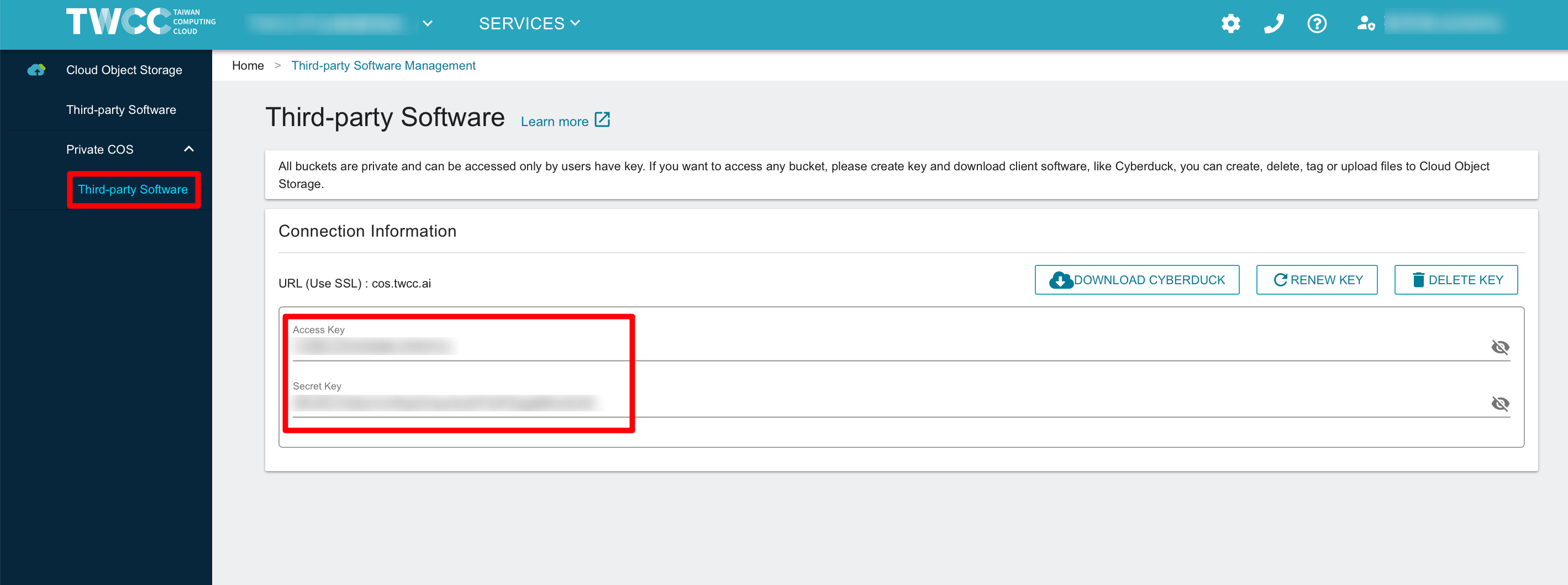

You can find the COS connection information on Private COS > Third-party Software page.

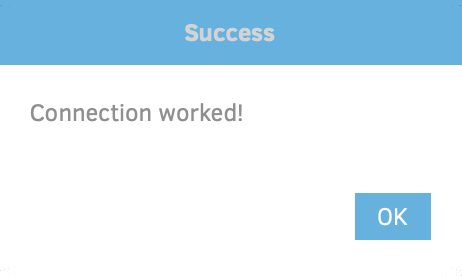

After entering the information, click Test Connection. If the settings are correct, system will pop up Connection worked! message.

3. Set backup source data and schedule

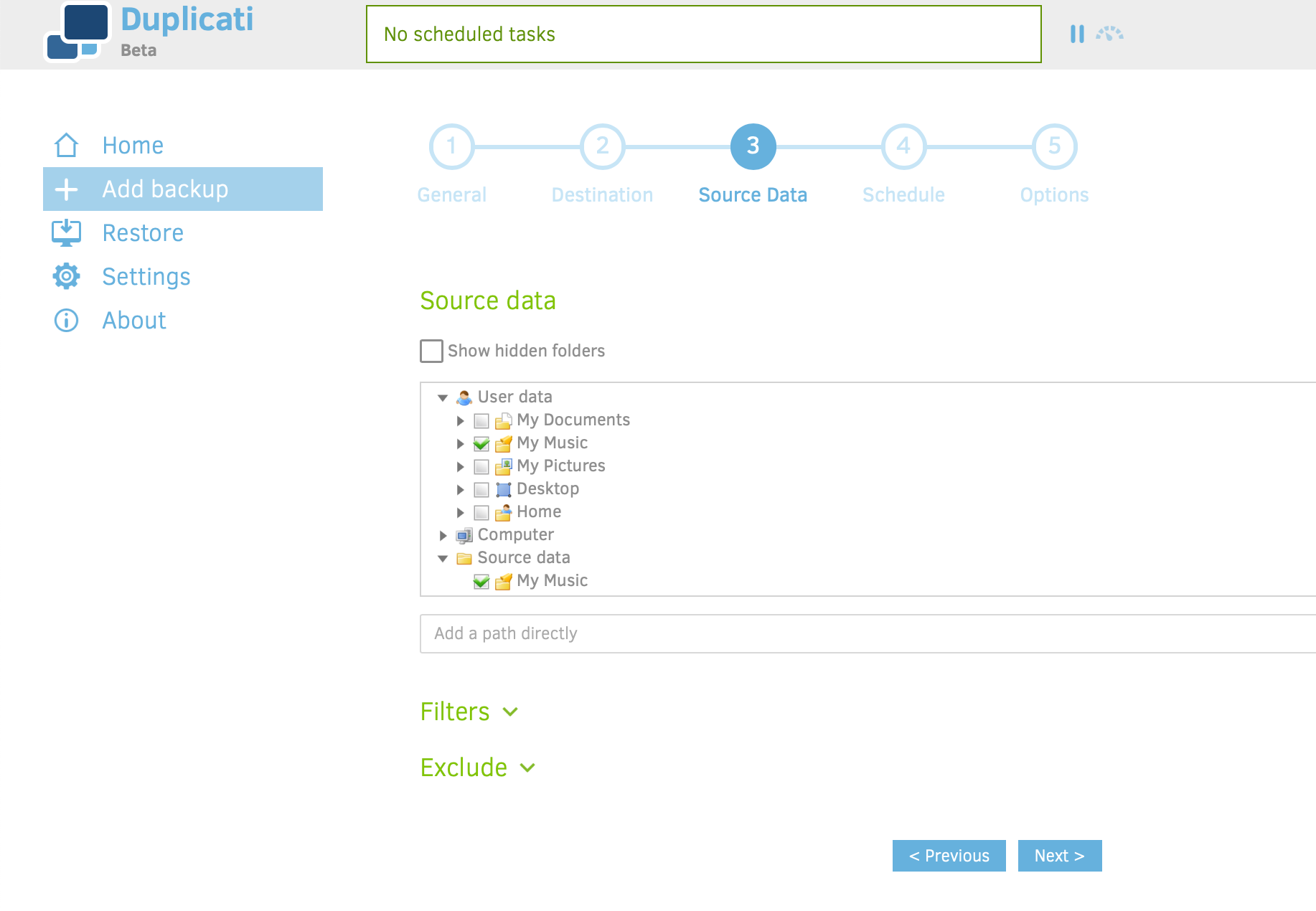

Select the folder or file you want to back up from the local computer

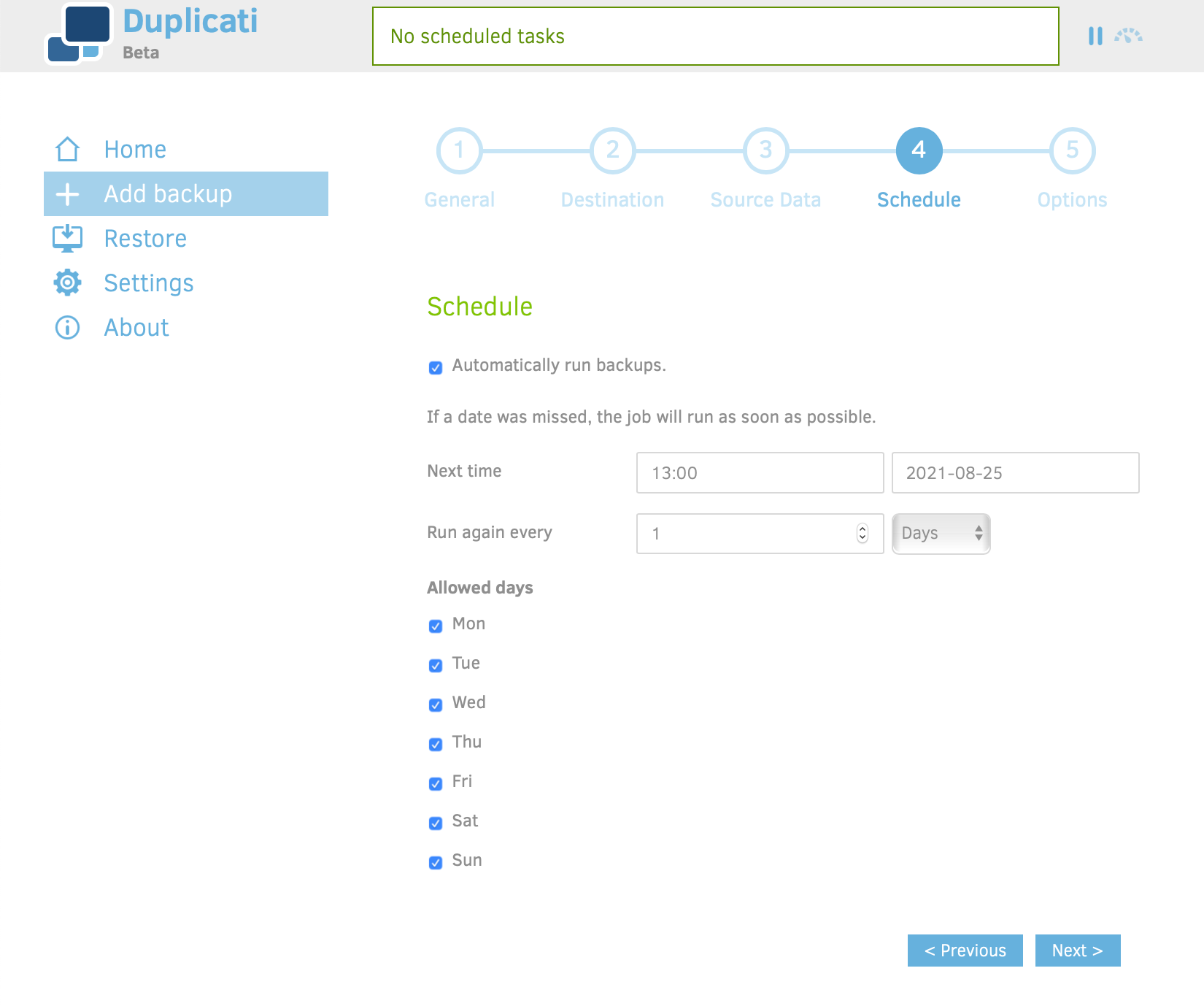

4. Set automatic backup schedule

E.g., regular backup automatically at 1 PM every day

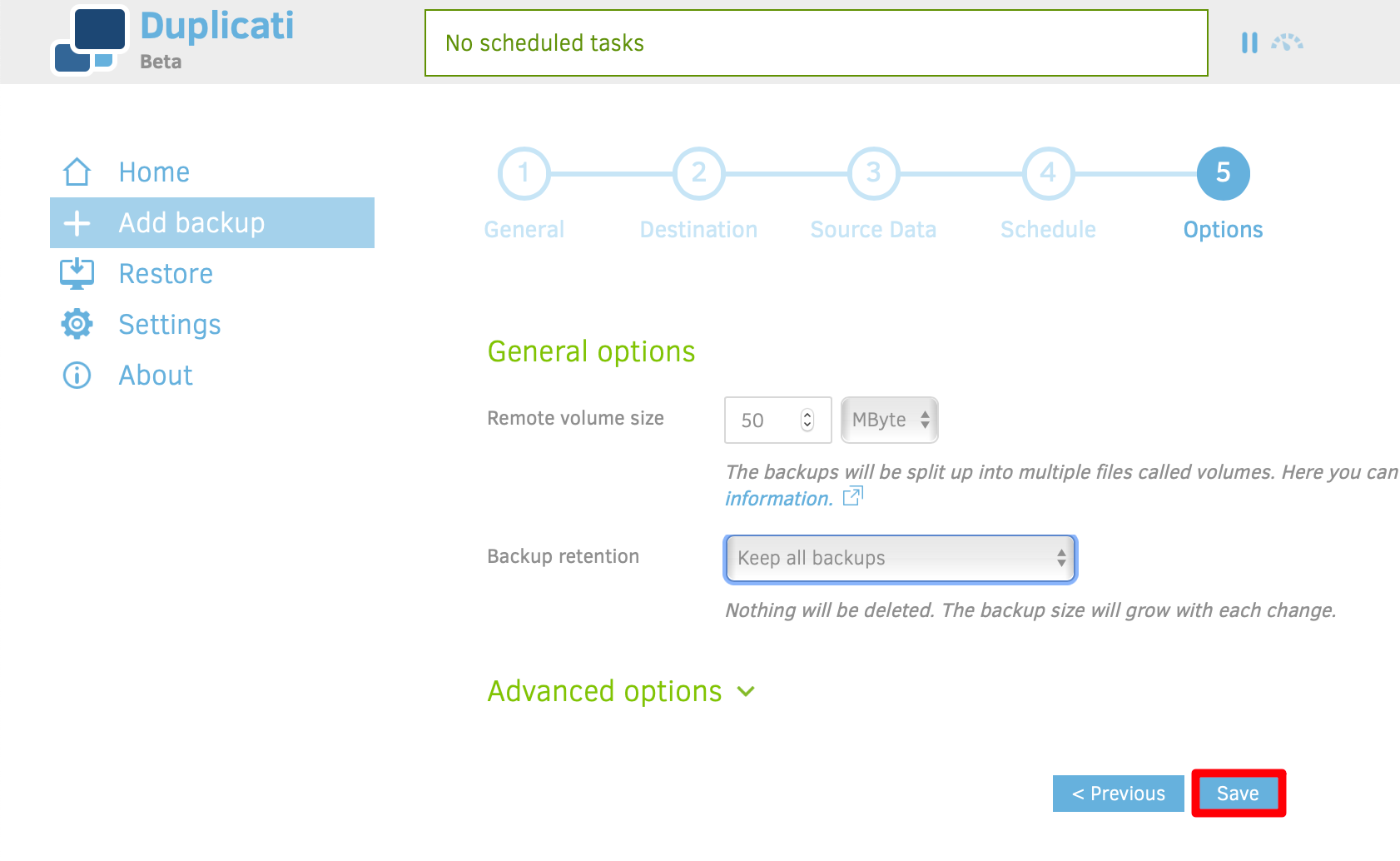

Set backup options and store settings

Select the default value for the remote volume size (select a smaller size if your Internet speed is slow). The number of backup retention can be selected according to your needs.

Select backup retention according to your needs (keep all backups, delete backups that are older than a specific time, keep a specific number of backups, smart backup retention or custom backup retention.).
